Reclaim Your Workshop: The Rise of Space-Saving CNC Machines

For any enthusiast diving into the world of digital fabrication, a familiar challenge quickly emerges: the insatiable appetite of CNC machines for space. The dream of crafting large-scale projects, like custom furniture or intricate signage, often collides with the reality of limited workshop real estate. Traditional CNC routers capable of handling full sheets of material typically demand a significant footprint, making them impractical for many home garages or smaller studios.

But what if you could achieve large-format cutting without sacrificing your entire workspace? The landscape of CNC technology is evolving, with innovative designs emerging to tackle this very problem. Let’s explore some ingenious solutions that bring powerful fabrication capabilities into more compact, manageable packages.

The Pioneering Spirit: Printrbot’s Crawlbot

One of the earliest innovators to address the space conundrum was Brook Drumm of Printrbot. In 2015, he unveiled the Crawlbot, a remarkable machine designed to cut full sheets of plywood. Its genius lay in its mobility: instead of requiring a vast, permanent work table, the Crawlbot rolled directly along the material being cut. This allowed it to collapse into a footprint barely larger than a square foot when stored, a minor miracle of engineering. Sadly, Printrbot has since ceased operations, and the Crawlbot is no longer available, but its legacy of innovation lives on.

Unfold and Fabricate: The Yeti SmartBench

For those seeking a modern solution with a small storage footprint, the Yeti SmartBench stands out. This clever machine rapidly unfolds a sturdy bench to accommodate full-sheet materials. Its unique design allows the CNC gantry to wrap around the material, effectively using the bench itself as its Y-axis. Make: alumnus Caleb Kraft thoroughly reviewed the Yeti a few years ago, praising its performance. However, this portability and ingenious design come with a price tag that positions it close to more powerful, standard CNCs, meaning you’re investing significantly in its space-saving capabilities.

Maslow 4.1: Vertical Versatility on a Budget

If budget and space are equally pressing concerns, the Maslow project offers an compelling alternative. The original Maslow, launched on Kickstarter in 2017, turned heads with its unconventional approach. Operating akin to a whiteboard drawbot, it hung vertically from two belts, with weighted gondolas guiding its movements. This wall-mounted design drastically reduced its floor space requirement while still allowing for full-sheet cuts.

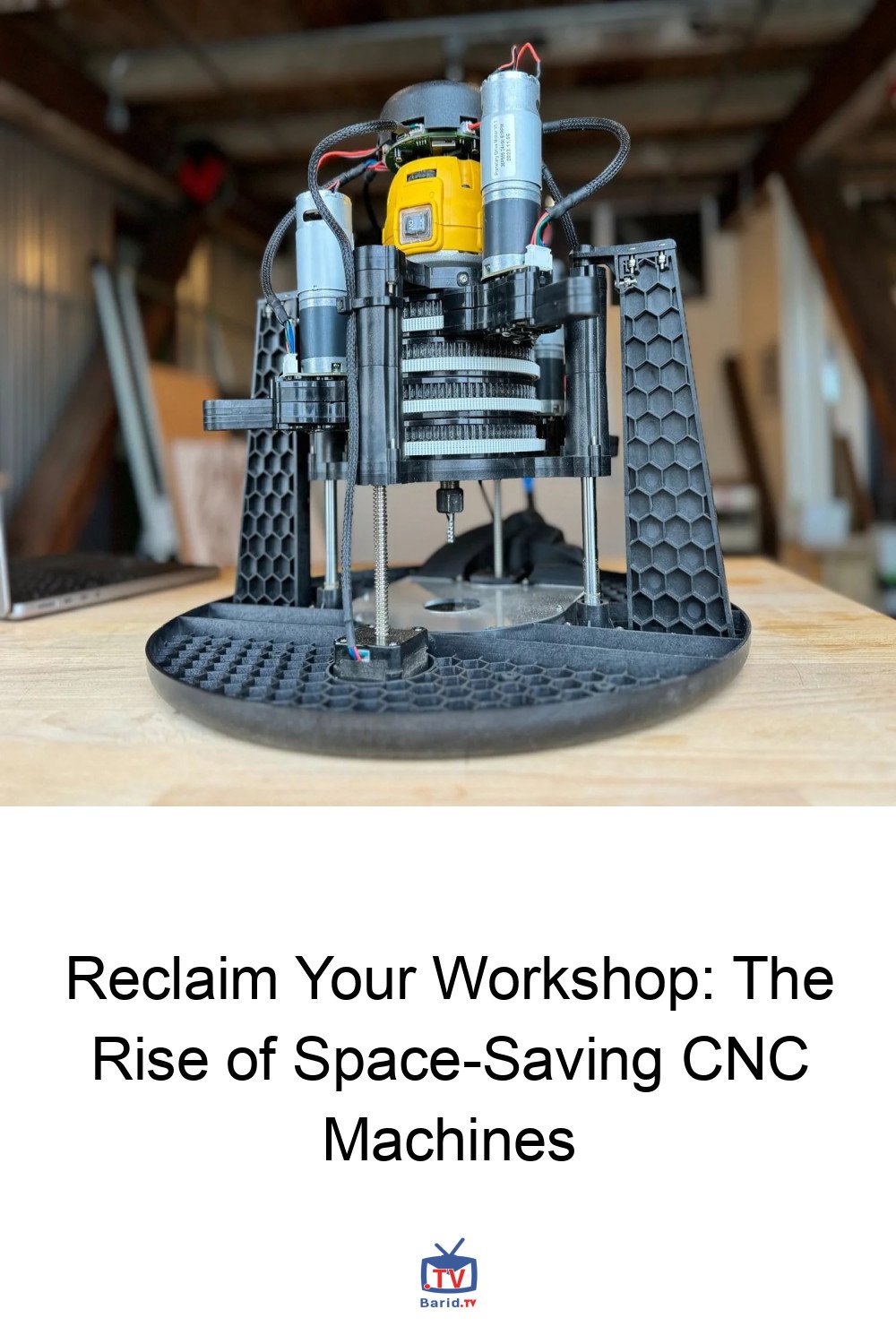

While the initial version faced challenges with its Z-axis and potential for lost steps, the Maslow team has relentlessly innovated. Fast forward seven years, and the Maslow 4.1 represents a significant leap forward. This newest iteration is ingeniously built around the popular Dewalt 611 palm router, integrating the router itself into the machine’s structural mechanics. Gone are the days of a simple two-belt dangle; the Maslow 4.1 now connects four belts to a horizontal surface or a near-vertical stand, offering enhanced stability.

A key innovation in the Maslow 4.1 is its use of DC servos instead of traditional stepper motors for X/Y movements. These servos are not only more cost-effective but also incorporate encoders, providing closed-loop control. This means the machine constantly knows its exact position, virtually eliminating lost steps or positional errors during cutting—a crucial improvement for precision. Priced at a remarkably affordable $525 as a kit, the Maslow 4.1 offers full-sheet cutting capabilities at an astonishing value. Its assembly, taking just a few hours, will feel familiar to anyone who has built a 3D printer, yet its design remains refreshingly unique. When not in use, the Maslow boasts the smallest storage footprint of any full-sheet machine, easily tucking away on a shelf, barely larger than an average 3D printer. The Maslow community continues to innovate, providing plans for various mounting solutions, promising even more creative uses for this compact wonder.

Bridging the Gap: The X-Carve Pro for Serious Makers

While the aforementioned machines excel in portability and space efficiency for hobbyists and small-scale projects, every tool involves a compromise. They might not be the first choice for high-volume, professional business operations where speed and rigidity are paramount. However, if you require serious performance without the colossal footprint of a full 4×8 industrial machine, Inventables offers a compelling solution: the X-Carve Pro.

Available in 4×4 and 4×2 formats, the X-Carve Pro features an indexed pass-through system that allows it to effectively cut materials far larger than its physical dimensions. This means you can achieve results comparable to machines two to four times its size, making it an ideal choice for ambitious furniture projects or custom signage businesses that still need to be mindful of workshop space. It strikes a powerful balance between professional capability and a more manageable size.

Your Creative Space Awaits

The dream of bringing large-scale CNC fabrication to life no longer requires an industrial-sized workshop. Whether you’re a hobbyist with a passion for making or an entrepreneur looking to launch a small business, the innovations in space-saving CNC technology offer viable, exciting pathways. From the ingenious portability of the Yeti SmartBench to the budget-friendly, evolving precision of the Maslow 4.1, and the professional power of the X-Carve Pro, there’s a compact solution waiting to help you turn your creative visions into tangible realities.

This article originally appeared in Make: Volume 96.
